Automatic rice milling machine
, Integrated paddy processing mill
, Fine rice processing equipment
Приложение: |
Отбеливание коричневого риса; Прямой помол риса; Полировка зерна; Грубая обработка зерна; Помол кофе |
Подходящие материалы: |
Падди;Просо;Кукуруза;Оргом ; Ячмень; Гречка; Пропаренный рис |
Диапазон мощности: |
0,3–6,5 т/ч |
Тип ролика: |
наждачный валик; стальной валик |
Воздушно-струйная система: |
Двунаправленный воздухозаборник, вентилятор отрицательного давления |
Система управления: |
Отрегулируйте вручную; ПЛК |
Материал: |
Национальный стандарт сварки листового металла из нержавеющей стали |
Напряжение: |
220V / 380V |
Automatic Integrated Rice Mill One‑stop Paddy Fine Processing
Company Profile
Zhengzhou Wangu Machinery Co., Ltd., founded in 1998, is a National High-tech Enterprise specializing in R&D and manufacturing of grain drying, processing and storage equipment. Located at No.113 Anyang Road, Shangjie District, Zhengzhou, Henan, the company covers over 26,000 square meters of modern production facilities, with products exported to over 50 countries.
With 26 years of technical accumulation, Wangu's rice milling product line covers 4 types — horizontal sand roller, horizontal iron roller, vertical sand roller, and vertical iron roller — with 11 models and capacity ranging from 0.3 to 6.5 t/h, meeting needs from small rice mills to large-scale rice processing plants.
Product Overview
The rice milling machine is the core equipment in rice processing, using rollers to grind and whiten brown rice by removing the bran layer. Wangu offers three series of rice milling machines for different processing scales and technical requirements:
|
Series
|
Models
|
Features
|
|
WGWM系列
卧式砂辊碾米机
|
WGWM15/18/25/30
|
1.0–5.0 t/h, sand roller grinding, replaceable rollers, suitable for medium-large rice mills
|
|
WGHM系列
卧式铁辊碾米机
|
WGHM80/110/150/200/300
|
0.3–4.0 t/h, iron roller whitening, air-jet cooling, suitable for small-medium rice mills
|
|
WG系列
立式砂辊碾米机
|
WG45/55/70A
|
2.0–6.5 t/h, vertical sand roller, low broken rate, suitable for large rice mills
|
|
WGM55
立式铁辊碾米机
|
WGM55
|
1.5–2.1 t/h, vertical iron roller, multi-function (milling + polishing + coffee grinding)
|
Main Applications
|
Application
|
Description
|
|
Brown Rice Whitening
|
Whitening brown rice into white rice by removing the bran layer after husking
|
|
Paddy Direct Milling
|
Small mills can process paddy directly into white rice, skipping the husking step
|
|
Grain Polishing
|
Polishing whitened rice to improve surface smoothness and appearance
|
|
Coarse Grain Processing
|
Milling and polishing millet, corn grits, sorghum, barley, buckwheat and other coarse grains
|
|
Coffee Grinding
|
WGM55 series can switch to coffee bean grinding, multi-function in one machine
|
WGWM Series Horizontal Sand Roller Specifications
The WGWM series uses a horizontal sand roller structure with replaceable rollers for different materials and precision. Tangential feed reduces broken rice, dual-direction air intake ensures bran removal. 4 models cover 1.0–5.0 t/h.
|
Model
|
Capacity
|
Power
|
Weight
|
Dimensions
|
|
WGWM15
|
1.0–2.0
|
15/18.5-4
|
420
|
1627×520×1765
|
|
WGWM18
|
2.0–3.0
|
18.5/22-4
|
600
|
1827×620×1965
|
|
WGWM25
|
2.5–3.5
|
22/30-4
|
630
|
1877×670×1965
|
|
WGWM30
|
3.5–5.0
|
30/37-4
|
700
|
1877×710×1965
|
WGHM Series Horizontal Iron Roller Specifications
The WGHM series uses a horizontal iron roller with air-jet system, producing smooth rice with less bran and low temperature. 5 models cover 0.3–4.0 t/h, suitable for small-medium rice mills.
|
Model
|
Capacity
|
Power
|
Weight
|
|
WGHM80
|
0.3–0.7
|
7.5/11-4
|
350
|
|
WGHM110
|
0.7–1.5
|
15/18.5-4
|
400
|
|
WGHM150
|
1.5–2.0
|
18.5/22-4
|
460
|
|
WGHM200
|
2.0–3.0
|
22/30-4
|
500
|
|
WGHM300
|
3.0–4.0
|
30/37-4
|
600
|
WG Series Vertical Sand Roller Specifications
The WG series uses a vertical sand roller with active sand frame and segmented sand roller design, low broken rate. Suitable for paddy, millet, corn, sorghum and more. 3 models cover 2.0–6.5 t/h.
|
Model
|
Capacity
|
Weight
|
Dimensions
|
Bran Port
|
|
WG45
|
2.0–3.0
|
900
|
1350×1100×2000
|
Ø180
|
|
WG55
|
2.5–3.5
|
1000
|
1350×1100×2100
|
Ø180
|
|
WG70A
|
4.5–6.5
|
2500
|
2100×1100×2600
|
Ø180
|

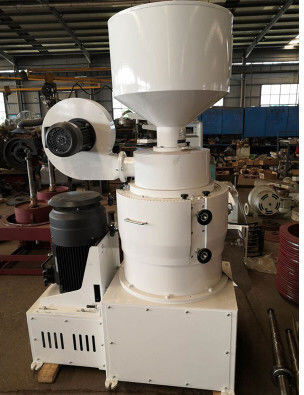

WGM55 Vertical Iron Roller Parameters
The WGM55 is a vertical iron roller rice mill with special sieve structure for low broken rate. Axial air intake keeps processing temperature low, producing glossy rice. Also suitable for coarse grain polishing and coffee grinding — multi-function in one machine.
|
Parameter
|
Value
|
|
Model
|
WGM55
|
|
Capacity
|
1.5–2.1 t/h
|
|
Main Motor Power
|
22–30 kW (4P)
|
|
Fan Power
|
1.5 kW (2P)
|
|
Weight
|
880 kg
|
|
Dimensions
|
2000 × 680 × 2000 mm (L×W×H)
|
|
Roller Type
|
Vertical Iron Roller
|
|
Air Intake
|
Axial Air Intake
|
|
Sieve
|
Special Sieve Structure
|
|
Functions
|
Milling + Polishing + Coffee Grinding
|
Working Principle
1, Feeding--Brown rice enters the whitening chamber through the feed port, tangential feed reduces broken rice
2,Grinding & Whitening---Roller rotates at high speed, sand/iron roller grinds brown rice surface to remove bran layer
3, Air-jet Cooling----Air-jet system blows cold air into the chamber, reducing rice temperature and broken grains
4,Bran Separation---Negative pressure fan extracts bran from the chamber through the bran suction port
5,Product Discharge---Whitened rice discharges from the outlet with less bran and smooth surface
Core Features & Advantages
|
No.
|
Feature
|
Description
|
|
1
|
Replaceable Rollers
|
Replace rollers of different materials and shapes based on material precision and variety, multi-function
|
|
2
|
Low Broken Rice Rate
|
Special sieve + tangential feed + air-jet cooling, triple protection for low broken rate and high yield
|
|
3
|
Air-jet Low-temp Processing
|
Dual air intake + negative pressure fan, reducing temperature, smooth rice with less bran
|
|
4
|
Sturdy & Durable
|
National standard welded frame, rollers and sieves with special materials and heat treatment, long service life
|
|
5
|
Tangential Feed
|
Gear-rack drive tangential feed, reducing impact and facilitating flow control
|
|
6
|
Multi-grain Capability
|
Besides paddy, can process millet, corn, sorghum, barley, buckwheat and more
|
|
7
|
Multi-function (WGM55)
|
Milling + grain polishing + coffee grinding, three functions in one, high ROI
|
|
8
|
Wide Capacity Range
|
0.3–6.5 t/h, 11 models, from small workshops to large processing plants
|
|
9
|
Easy Operation
|
Compact structure, easy operation and maintenance, PLC/manual optional
|
|
10
|
High Quality Output
|
Output rice with smooth glossy surface, less bran, low temperature, strong market competitiveness
|
